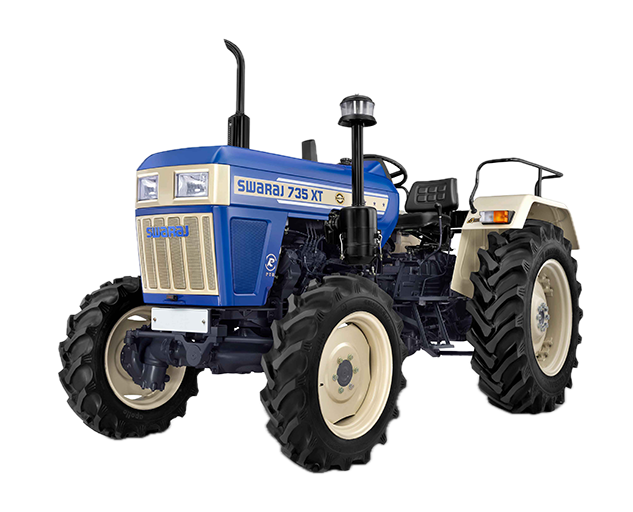

Swaraj 735 XT 4WD

$630,000.00

The Swaraj 735 XT (4WD) tractor is engineered to meet the evolving needs of modern farming equipment. Powered by a robust 41–45 HP (29.82–33.09 kW), 3307.2 cc, 3-cylinder direct-injection engine, it delivers exceptional torque and fuel efficiency. Its advanced Four-Wheel Drive system ensures superior traction on wet, uneven, and hilly terrains, making it perfect for puddling, primary tillage, and heavy hauling operations.

Equipped with a Partial Constant Mesh gearbox and side shift design, the tractor offers smoother gear transitions and ease of operation. Reliable oil-immersed brakes guarantee safe stopping with reduced maintenance. A reinforced front axle and well-balanced chassis enhance durability and ensure smooth handling of heavy implements, making the Swaraj 735 XT 4WD a dependable choice for demanding agricultural applications.

🔧 Swaraj 735 XT 4WD Specifications

  • No. of Cylinders: 3-cylinder, water-cooled, direct injection

  • Power Category: 41–45 HP (29.82–33.09 kW)

  • Engine Capacity: 3307.2 cc

  • Brakes: Oil-immersed

  • PTO Speed: 540 with multi-speed forward & 1 reverse speed

Categories: , Brand:

Engine

Rated Engine Speed (r/min) – 2000
Displacement (cm3) – 3307.2
Bore (mm) – 110
Stroke (mm) – 116
Service Interval (h) – 400

Transmission

Gear Box Type – Sliding Mesh / PCM
Number of gears and shift pattern – 8F+2R Center Shift / 8F+2R Side Shift
Clutch Type – SC/DC
Front Axle Type – Fixed
Front Axle drive – 2WD
Steering – Power/Mechanical*

PTO and hydraulics

PTO (r/min) – 540
Max Hyd. Lift Capacity (kg) – 1650
DCV (optional)

Tyre Size

Front 2WD (mm) – 152.40 mm x 406.40 mm (6.00 x 16)
Rear 2WD (mm) – 345.44 mm x 711.20 mm (13.6 x 28)

Brakes

Type : Oil Immersed Brakes

Electrical

Battery – 80 Ah

Dimensions

Overall length(mm) – 3450
Overall Width (mm) – 1780
Wheel Base(mm) – 2090
