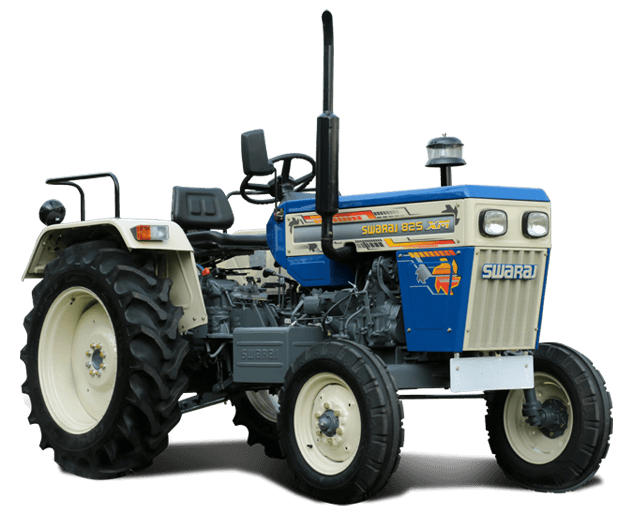

swaraj 825 XM

Engine

Model S-15 XM
Power: 14.91 kW-22.37 kW (20-30hp)
Type 4 Stroke, Direct injection, Diesel engine.
No. of Cylinders 1
Bore and Stroke 170 mm x 136 mm
Displacement 1537 cm³
Rated Engine Speed 1650 r/min.
Air Cleaner 3- Stage Oil Bath Type
Cooling System Water Cooled with No loss tank.

Clutch

Clutch Single dry disc friction plate

Gear Speeds

No. of Gears 8 Forward, 2 Reverse speeds
Forward 3.08 to 28.40
Reverse 2.71 & 9.34

PTO

PTO Speed: Standard 540 r/min

Brakes

Brake Type Standard Dry Disc type Brakes

Steering

Standard Mechanical Steering with Heavy Duty single drop arm for better maneuverability & comfort to operator.

Hydraulics

Live Hydraulics A) Position control: To hold lower links at any desired height. B) Automatic draft control :To maintain uniform depth c) Mix Control : For optimum field output
Lifting Capacity 1000 kg at lower link ends.
Linkage 3 point linkage suitable for Category- I & II type implement pins

Tyre Type

Front Tyre – 152.40 mm x 406.40 mm (6.00 x 16)
Rear Tyre – 314.9 mm x 711.2 mm (12.4 x 28)

Electricals & Electronics

Electricals 12 Volt, 88 Ah. Battery Starter motor & Alternator
Instruments Engine r/min cum hour meter with direction indicators, Fuel Gauge, Ammeter, and Water Temp. Gauge & Oil Pressure Indicator.

Weights & Dimensions

O.A. Length 3335 mm
O.A. Width 1700 mm
O.A. Height 2220 mm
Wheel Base 1915 mm
Min. Ground Clearance 380 mm
Weight of Tractor 1850 kg
Wheel Track Front 1340 mm
Wheel Track Rear 1355 mm (with 12.4*28 tyre type)
